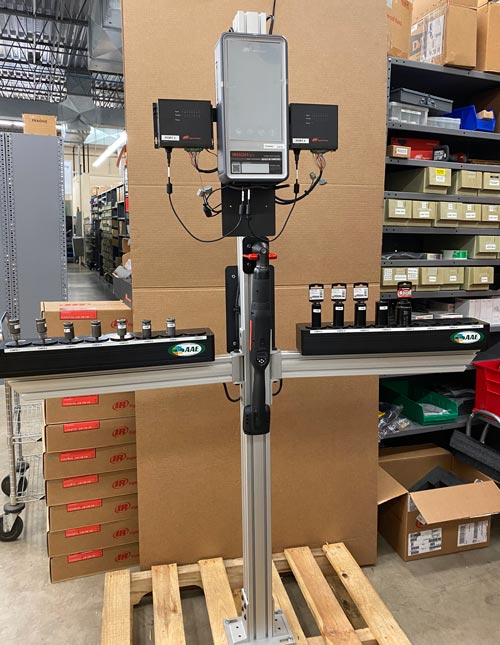

MCE Socket Trays for Error-Proof Torque Control
Sensor-enabled socket trays connect to tool controllers to ensure the right socket and torque every cycle.
- Socket position is monitored at the tray
Each socket location is precision-machined for error-proofed positioning and equipped with an integrated sensor. The system continuously monitors socket presence, ensuring only the correct socket profile fits each position and identifying which location is active at any time. - Operator selects the required socket
When the operator removes a socket from the tray, the system detects the change in state. Visual indicators confirm torque selection or alert the operator to the correct socket to use, reinforcing the intended process flow. - Socket selection data is sent to the tool controller
The tray transmits the socket position information to the tool controller. This communication links the physical socket selection to controller logic, ensuring tool behavior aligns with the selected fastener. - Controller applies the associated torque logic
Based on socket position data, the controller calls the corresponding torque program or enables the tool after the correct socket has been pulled. This supports correct torque parameters without requiring manual changes by the operator. - Fastening operation is completed under controlled conditions
With the correct socket and torque program active, the operator completes the fastening step. The result is a repeatable, error-resistant process that supports quality requirements while maintaining normal production workflow.
